Automatic 160krpm PCB Drilling Machine Multi - Head Imported Closed
Linear Scale
Features:
We could offer many kinds of PCB driller machine:
1. Single spindle
2. Two spindle
3. Four spindle
4. Six spindle
5. Eight spindle
6. Specific designed to meet differents customers's requirements...
7. 24 hours technical support by email and telephone service..
8. Warranty: 1year for free repair (Except consumables), provide
free technical service support for all life.
9. Provide English manual or operating video.
Working Conditions:
| Power Supply: | 3PH-AC380V+PE,50/60HZ 15KVA |
| Temperature: | 22±2℃/45%-65% |
| Noise: | ≤75dBA |
| Air Pressure: | 6.5-7.5bar |
Product Datas:
| X,Y,Z-axis Stroke | 560mm*700mm*40mm |
| X,Y-axis Drive | Imported High-power servo motor(Guaranteed transmission speed) |
| Z-axis Drive | Imported servo motor |
| Feed Rate X,Y-axis | 60m/min |
| Feed Rate Z-axis | 30m/min |
| Max. Working Area | 560mm*700mm |
| Drilling Diameter | Φ0.2mm-Φ6.35mm |
| Drilling Accuracy | ±0.025mm |
| Positioning Accuracy | ±0.004mm |
| Replicate Positioning Accuracy | ±0.0025mm |
| Spindle Speed | 160-180krpm ABL/Westwind(Optional) |
| Max. Drilling speed | 460-500hole/min |
| Spindle cooling method | Water cooling |
| Tool Change Mode | Antomatic Tool Change |
| Machine Dimension | 4420*2000*1680mm |
| Spindle Spacing | 560mm |
Notes:
The drilling speed depends on the thickness of the plate, the
number of plates and the hole size. The drills on
the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460
holes/min； 0.5 holes,and the drilling speed
is more than 510holes/min.
Descriptions:
Customized & new generation PCB drilling machine
QIC System: Large and small pressure foot switching function to
ensure small PCB board’s accuracy.
The CBDT electric contact automatic detection broken tool function
is the timely response, and the hole can be used to monitor the
edge collapse. It can be used as a fast drilling function.
Spindle configuration:
ABL/WESTWIND 160-180KTDM High-speed air-floating spindle for stable
100μm micro-hole machining, good macro hole and slot machining
Drive System:
Imported high-function, high-torque motor to ensure fast
transmission speed
Transmission system:
Japan NSK high precision lead screw (fast, quiet)
German Rexroth P-precision Linear Guideway(High precision,long
lasting)
Tool magazine selection
Upper-tool magazine:
Capacity 220 / pcs/ axis, can achieve full diameter tool without
collar, short tool change time, easy to operate the upper and lower
plates, don’t rotate the tool change.
Lower-tool magazine:
Large capacity of 300, easy to arrange the knife automatically,
operate, replace the tool change, clean the tool, have little
effect on the spindle
ontrol software:
Mature, stable advanced software control system, friendly interface
and graphical simulation function, easy learning
Feedback system:
Imported as a closed grating ruler, dustproof and antifouling
effect is very good
Tool Detection:
Imported Tool detection can realize tool length and tool diameter
detection to ensure the accuracy of the drill

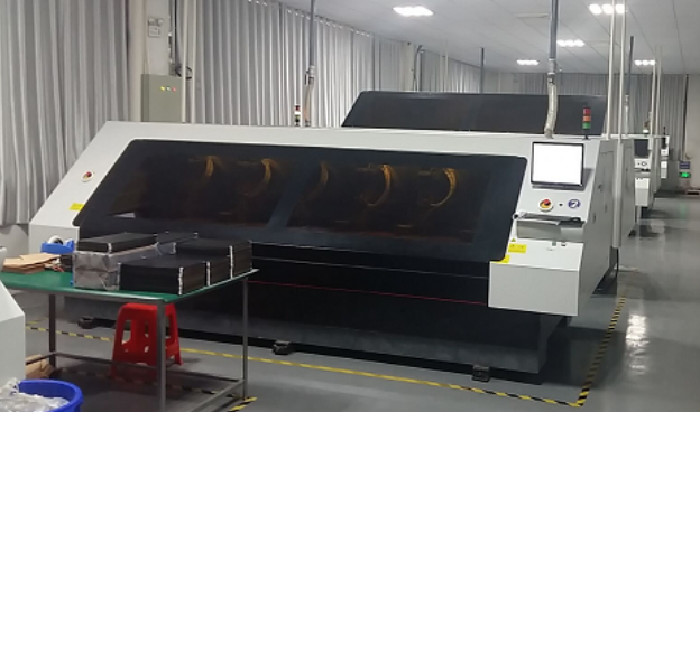

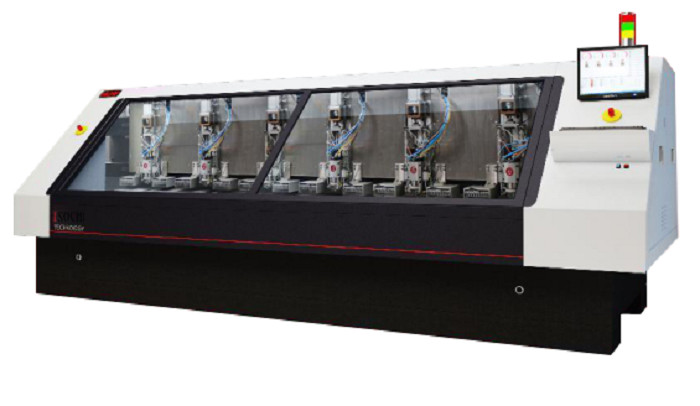

Our Machine pictures:
